A vacuum furnace is a highly specialized device used in the modern heat treatment of metals and alloys. It allows for the heating and cooling of workpieces in a controlled, oxygen-free environment. This technology is primarily used in industries that demand high precision, clean surfaces, and optimal mechanical properties, such as aerospace, automotive, and medical engineering. This article explains the functionality of a vacuum furnace and its key advantages.
A vacuum furnace is a machine in which the air pressure is significantly reduced to create a vacuum. The absence of oxygen and other gases inside the furnace prevents oxidation and contamination of the workpieces during heat treatment. These furnaces are typically used for processes such as hardening, annealing, brazing, sintering, and quenching.

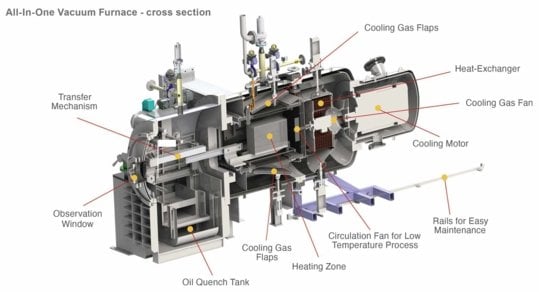

The operation of a vacuum furnace can be divided into several stages:
The first step in the vacuum furnace process is evacuating the chamber. Once the workpiece is placed inside, the chamber is sealed, and air is removed using vacuum pumps. This creates a vacuum with a pressure reduced to just a few millibars, preventing oxygen and other reactive gases from interacting with the metal and avoiding the formation of scale or oxides.
Once the desired vacuum is achieved, the heating process begins. Heat is generated by electric heating elements located along the walls of the vacuum chamber. The furnace temperature can range from 500°C to 2,500°C, depending on the material and the required heat treatment.
The temperature increases uniformly, with the heating rate and final temperature precisely controlled. The uniform heat distribution in the vacuum ensures even heating of the workpiece, which is crucial for avoiding stress or deformation.
After reaching the target temperature, it is maintained for a specific period. During this phase, the desired changes in the material's microstructure occur, such as hardening or phase transformations. The holding time varies depending on the type of heat treatment and the desired properties of the final product.
After the holding phase, the workpiece is cooled in a controlled manner within the vacuum furnace. This can occur through natural cooling in the chamber or by using gas quenching. Here, a gas such as nitrogen or argon is introduced into the chamber under high pressure to cool the workpiece quickly and evenly.
Controlled cooling minimizes thermal stresses, which is particularly beneficial for delicate materials or complex components. The cooling rate can be adjusted to meet the material's requirements, ensuring optimal mechanical properties.
Using a vacuum furnace offers numerous benefits over traditional heat treatment methods:
Vacuum furnaces are widely used in high-tech industries where precision and cleanliness are critical. Key applications include:
The functionality of a vacuum furnace is based on creating a high vacuum, enabling the heat treatment of metals and alloys under highly precise and clean conditions. This technology offers significant advantages in surface quality, mechanical properties, and process control. Thanks to their flexibility and efficiency, vacuum furnaces are indispensable in numerous industries, particularly where the highest standards of quality and precision are required.
More about vacuum furnaces: AICHELIN vacuum furnaces
